linear array speakers

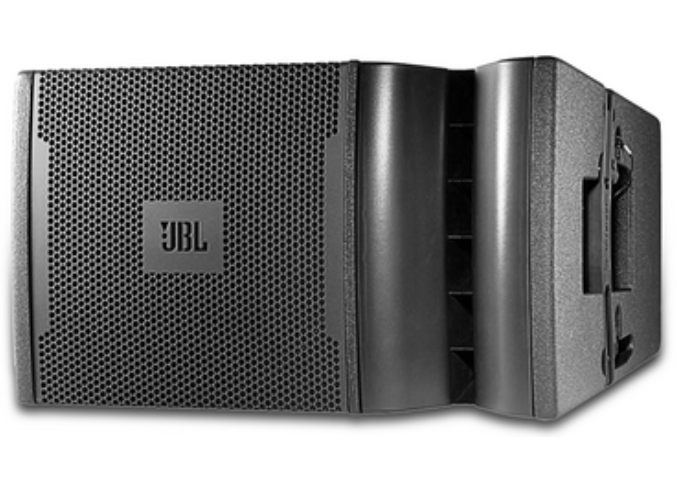

VRX932LA

product details

    frequency range ( －10db）：57HZ－20KHZ

    frequency response ( ±3db）： 75HZ－20KHZ

    coverage: 100 °X150°（generally)

    dividing mode: dual amplifier /passive frequency division, external switch conversion frequency division point: 1.2 KHZ

    rated power (continuous /programme /peak value )：

    passive frequency division: 800 W/1600W/3200/ bi-amp low frequency: 800 W/1600W/3200W/ bi-amp high frequency: 75 W/150W/300W/

    maximum sound pressure level SPL： passive frequency division: 95 db bi-amp low frequency: 95 db bi-amp high frequency: 114 db

    low frequency driver: 1 X JBL 2262H,305㎜(12″)，neodymium magnet, dual voice coil differential driver.

    high frequency drive: 3 X JBL 2407J 25.4㎜(1″),neodymium magnet compression driver. general impedance:

    passive frequency division: 8 Ω

    bi-amp low frequency: 8 Ω bi-amp high frequency: 8 Ω

    box: 18 ㎜thick, 13-layer baltic birch plywood

    hoisting /install: VRX-AF linear array frame (optional) appearance treatment: black Dura Flex paint mask: black powder metallurgical steel plate, standard holes of no. 16, filled with sound-permeable foam plastic.

    input connector: 2 X NL-4 speaker Neutrik Speako

    volume (height X width X deep): 349 ㎜×597㎜×381㎜

    net weight: 21.8 ㎏

    optional parts: VRX-AF array hanging frame SS2-BK speaker tripod SS3-BK satellite speaker pole
